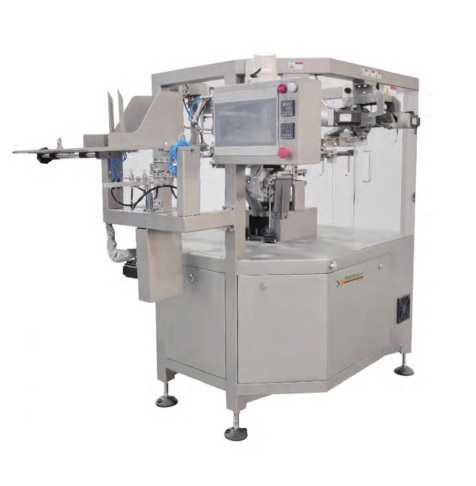

New Model GDS260-08 Pre-made Pouch Packaging Machine

1. New Model GDS260-08 Pre-made Pouch Packaging Machine
Features: code printer, zipper opening device, bottom vibration device,
air discharge device, bottom opening device, and English Controls and Manual(s).
Electrics: 1 Phase / 60 Hertz / 220 Volts, CE Air Required.
*(MFG remark: the hole and zipper on bag need to be pre-made)
Delivery: approx. 8-10 weeks from receipt of 65% Deposit.
(balance due after test video an prior to shipment from factory)
Short Test Video: https://www.youtube.com/shorts/eXLxV_rzeRI
Optional Add-ons:
2. New 14 Multi-Head Electric Scale System

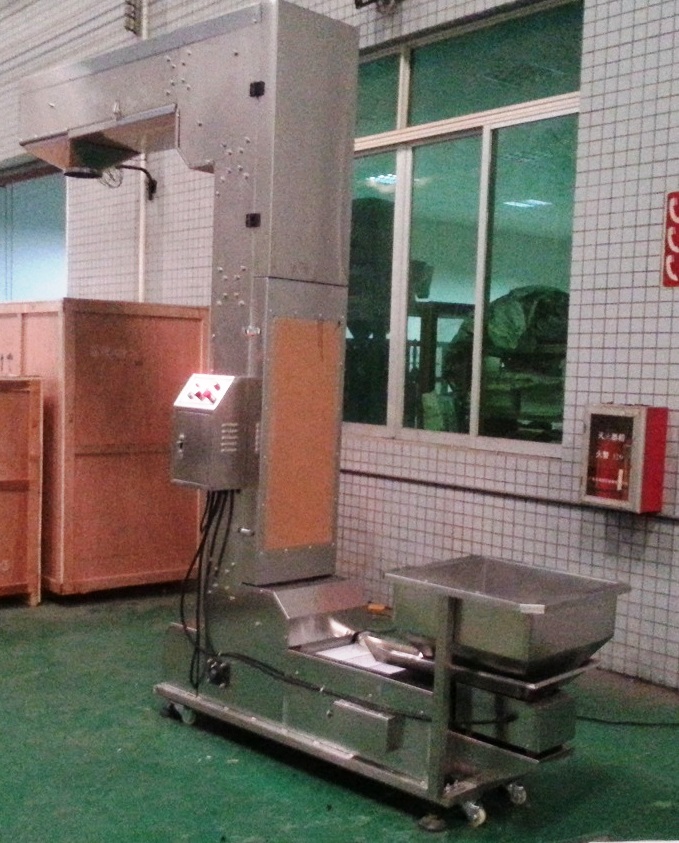

3. New Z-Bucket Lifter

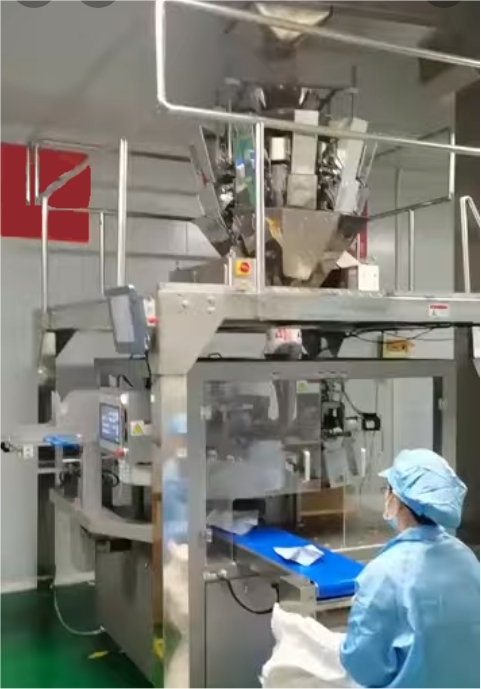

4. New Stainless Steel (304) Platform/Mezzanine (shown in video)
Technical parameter
The packaging design speed of the equipment is 70 bags/min,
which mainly depends on the material fluidity and the difficulty of packaging bags.
Packaging specifications L≤400mm, W 130-260mm
Packaging form: Prefabricated bags (flat bags, standing bags, zippered bags, tote bags, M bags, etc.)
Gas source 6kg/cm ², 0.4m ³/min
Packaging materials include single-layer PE, PE composite film, paper film, and various other composite films
The total weight of the machine is about 600kg
Power type 220 Votls, CE total power: 8KW
Dimensions 1850*1250*1520（mm）

Main structural performance

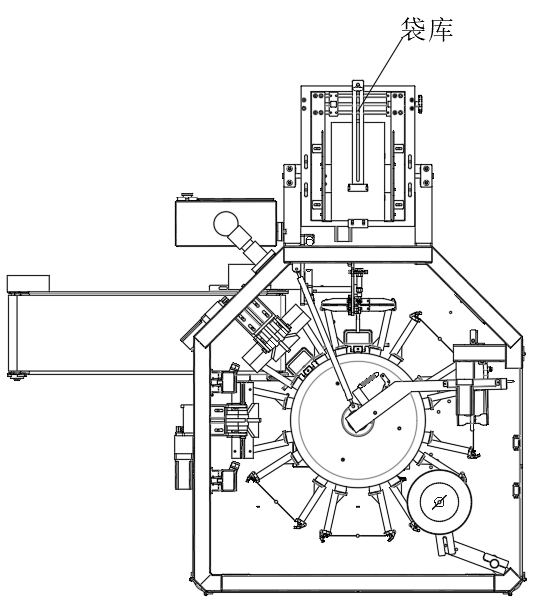

1. The whole machine is an eight station structure,
consisting of an industrial computer (based on Ethercat bus), a large touch screen
Centralized screen control, simple and convenient operation.
2. Equipped with an automatic fault tracking and alarm system, with real-time display of operating status.
3. Empty bag tracking and detection device, achieving no opening, no dropping, and no sealing.
4. The action execution adopts a fully servo control system, which is reliable, fast, and accurate.
5. The overall design complies with GMP standards and has passed CE certification.
